MOXA CP-168U 交換器

Name: MOXA CP-168U 交換器
Brand: 諾亞數位
SKU: CP-168U
Price: 5720.0 TWD
Availability: InStock

※本網站商品資訊、圖片或規格有誤，請以原廠公告為主，如有修改恕不另行通知。本公司保留隨時修改和接受與否之權利
※品項數量眾多，無法即時更新庫存，請先詢問庫存
※購買前請詳讀各項資訊並確認商品規格是否符合您的需求

NT$5,720

商品編號: CP-168U

供貨狀況: 尚有庫存

加入最愛

商品介紹

CP-168U

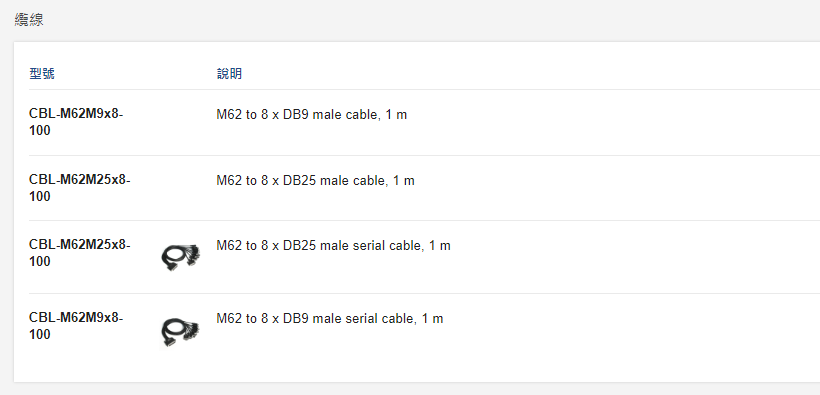

加購線材

Serial Interface

Comm. Controller
MU860 (16C550C compatible)
Bus
32-bit Universal PCI
Connector
DB62 female
FIFO
128 bytes
Max. No. of Boards per PC
8
No. of Ports
8
Serial Standards
RS-232
Baudrate
50 bps to 921.6 kbps
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
None, RTS/CTS, XON/XOFF

RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Windows Drivers
DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers
Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers
QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Input Current
180 mA @ 5 VDC

Dimensions
82 x 120 mm (3.22 x 4.72 in)

LED Indicators
Built-in Tx, Rx LEDs for each port

Operating Temperature
CP-168U: 0 to 55°C (32 to 131°F)
CP-168U-T: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)

EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class B
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
International Approval
CP-168U: KC

Green Product
RoHS, CRoHS, WEEE

Time
280,854 hrs
Standards
Telcordia (Bellcore) Standard TR/SR

Warranty Period
5 years
Details
See www.moxa.com/warranty

●連接埠數 8 Port UPCI Board , RS-232, designed for POS and ATM applications
●傳輸速率 ;
●堆疊/機構 ;
●擴充槽 ;
●Mac Address ;
●網管功能 ;

【小叮嚀】
※本網站商品資訊、圖片或規格有誤，請以原廠公告為主，如有修改恕不另行通知。本公司保留隨時修改和接受與否之權利
※品項數量眾多，無法即時更新庫存，請先詢問庫存
※請在下標購買前詳讀各項資訊並確認商品規格是否符合您的需求，避免造成雙方不愉快交易
